HW Series High-Flow Motor Driven Mixed Irrigation Water Pump Direct-Drive Agricultural Pump with Maximum Head of 200m
| application | Water Treatment Solutions，Automotive Industry |
| pressure | Low Pressure |
| warranty | 1 year |
| place of origin | Hebei, China |
| customized support | OEM,ODM |
| power source | Electric |
| structure | Single-stage Pump |
| model number | HW |
| temperature | 5-50°c |
| Chemical Compatibility | Water |
| control method | Manual Control,Fully Automatic Control,Semi-Automatic Control |
| brand name | qizhuo |
| shaft power | 2.38-397kw |
| Flow rate | 70-8640m³/h |
| head | 3.7-18.0m |
| Diameter | 50-150mm |
| speed | 450/485/490/590/730/970/980/1180/1200/1450/1800/2900r/min |
| Voltage | 220/380v |
| Cable | as customer request |
| Style | Domestic Use Submersible Effluent Sewage Water Pump |
| Liquid | Clean Water |
| sealing material | Stainless Steel |
| surface treatment | Spraying |
| Motor Enclosure | totally enclosed nonventilated |
▶ Application

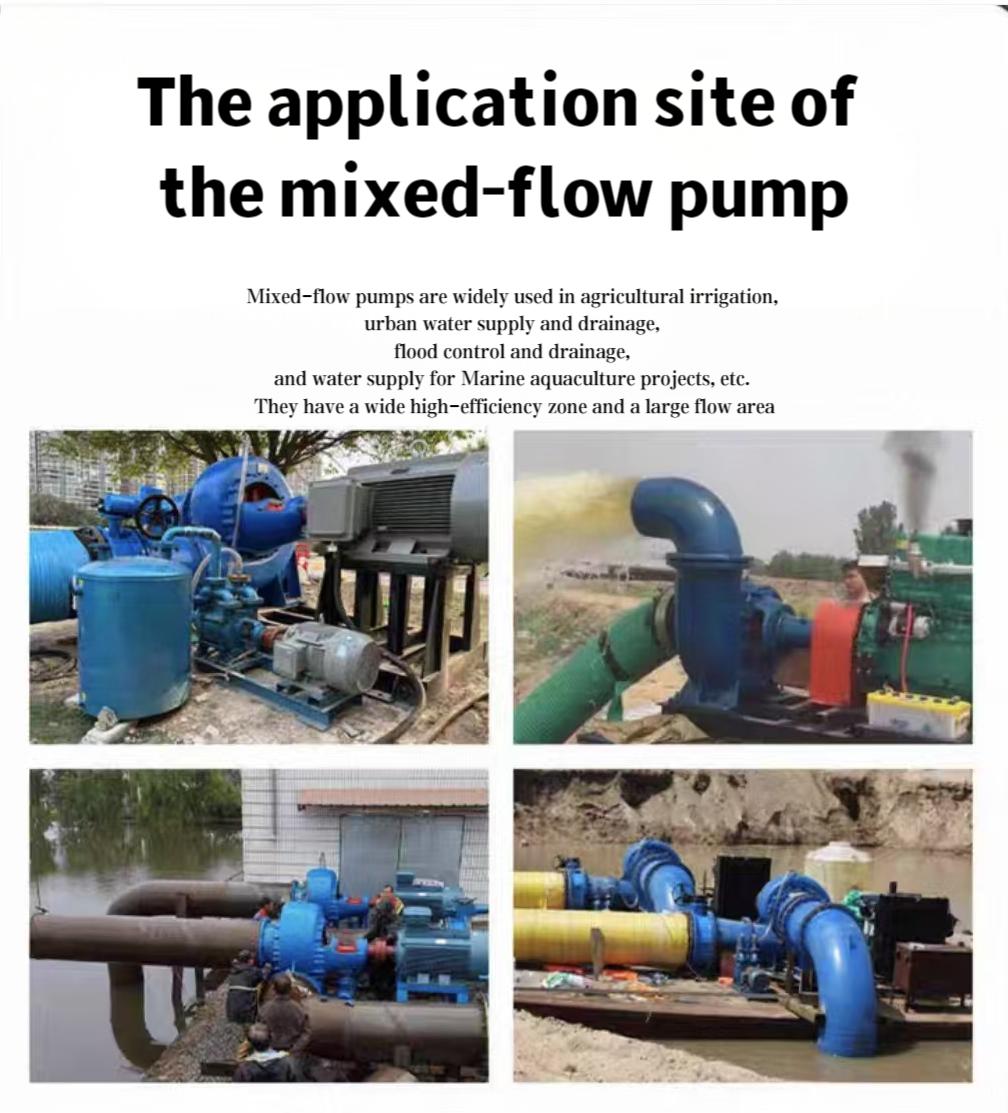

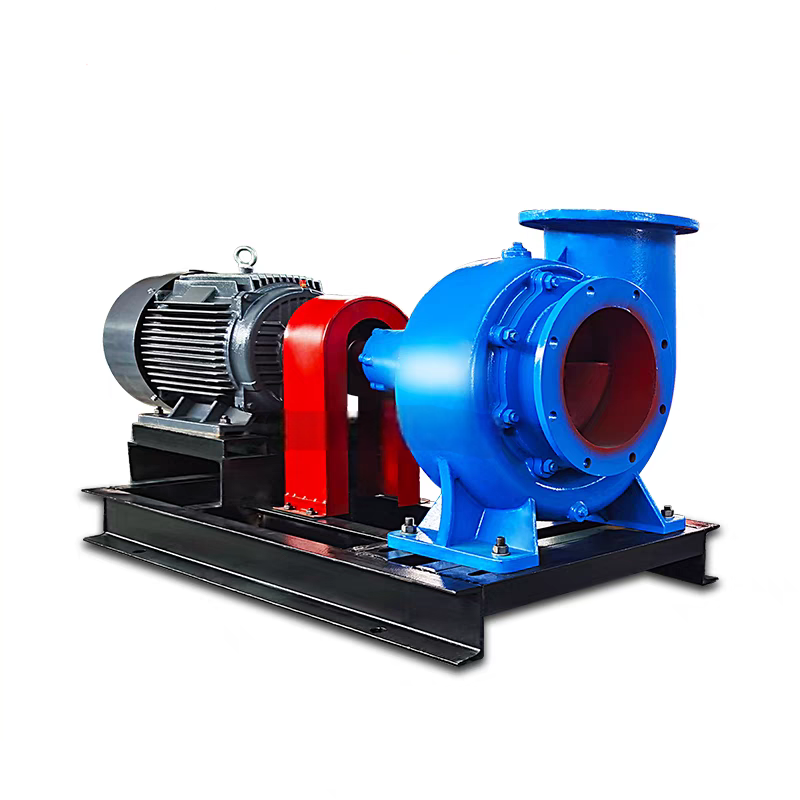

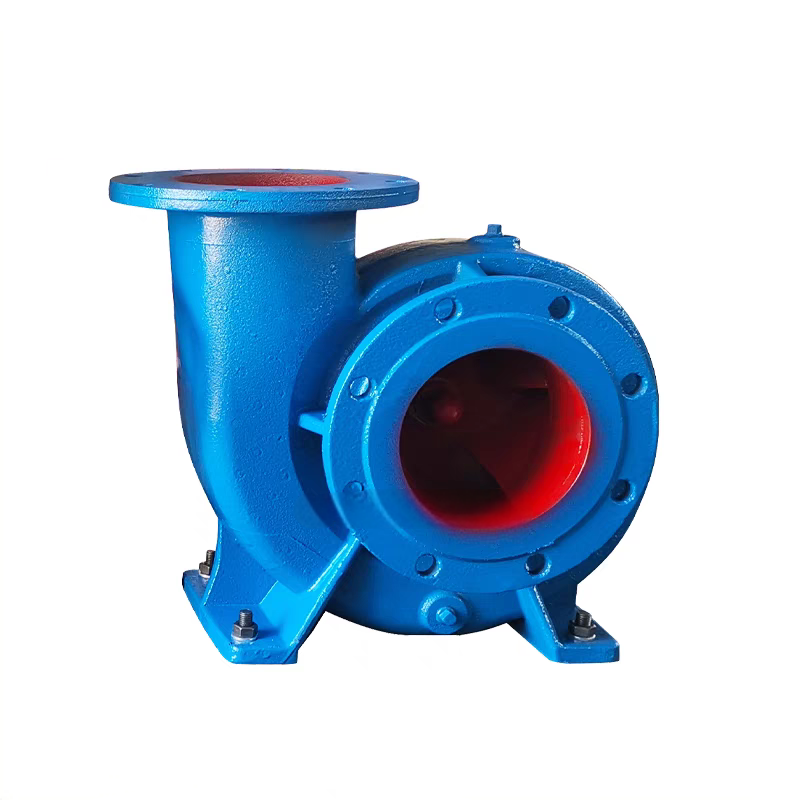

The HW type pump is a horizontal, single-stage, single-suction, volute-type mixed-flow pump. It is suitable for conveying clear water or other liquids with physical and chemical properties similar to water. The temperature of the conveyed liquid should not exceed 50℃. It is widely used in various scenarios such as farmland irrigation, industrial and urban water supply and drainage.
The performance range of the HW type pump: flow rate 90 - 9000 m'/h, head 3.5 - 22 m.
▶ Features:
Simple structure, reliable operation, convenient installation, high efficiency, small size, and light weight.

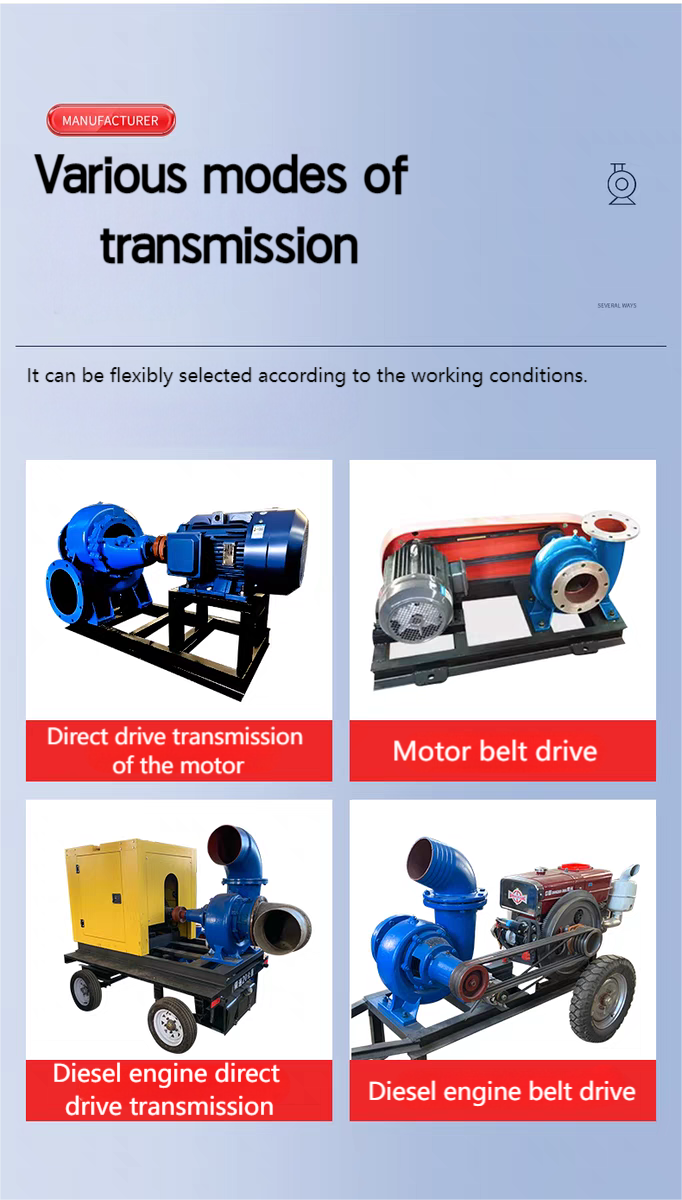

▶Transmission mode:

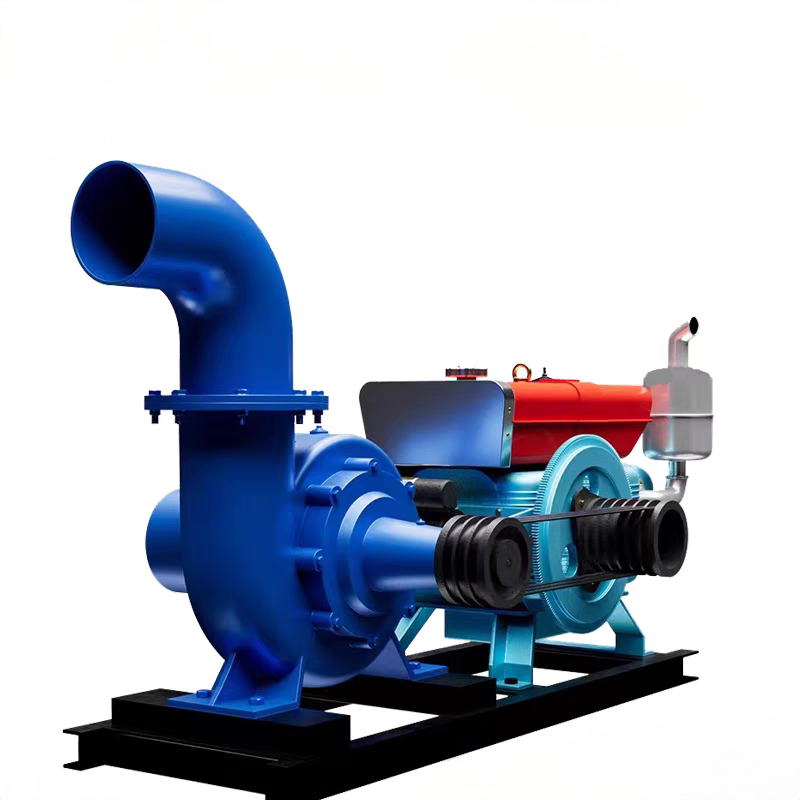

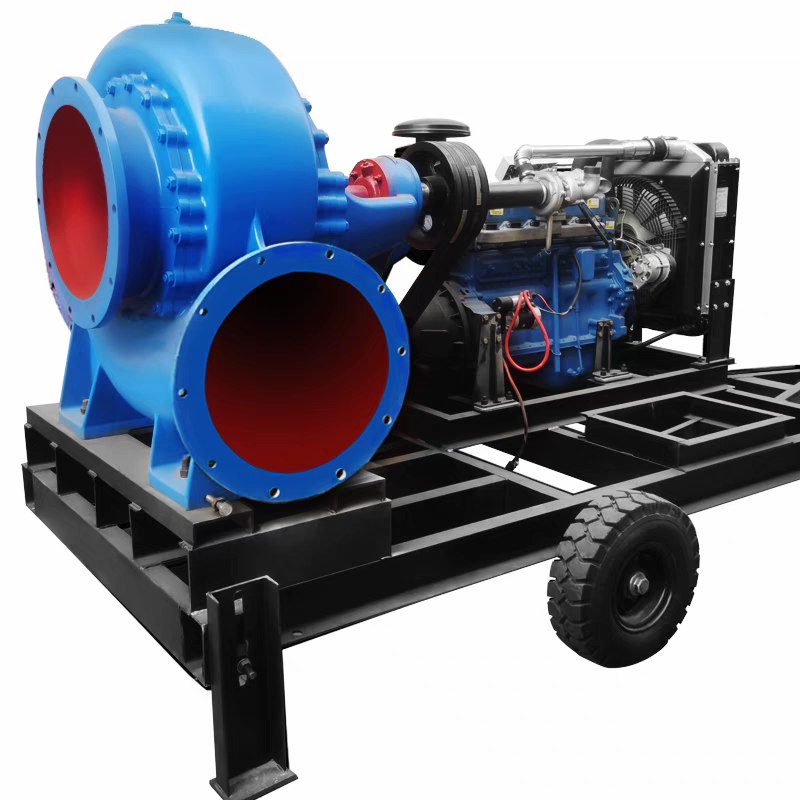

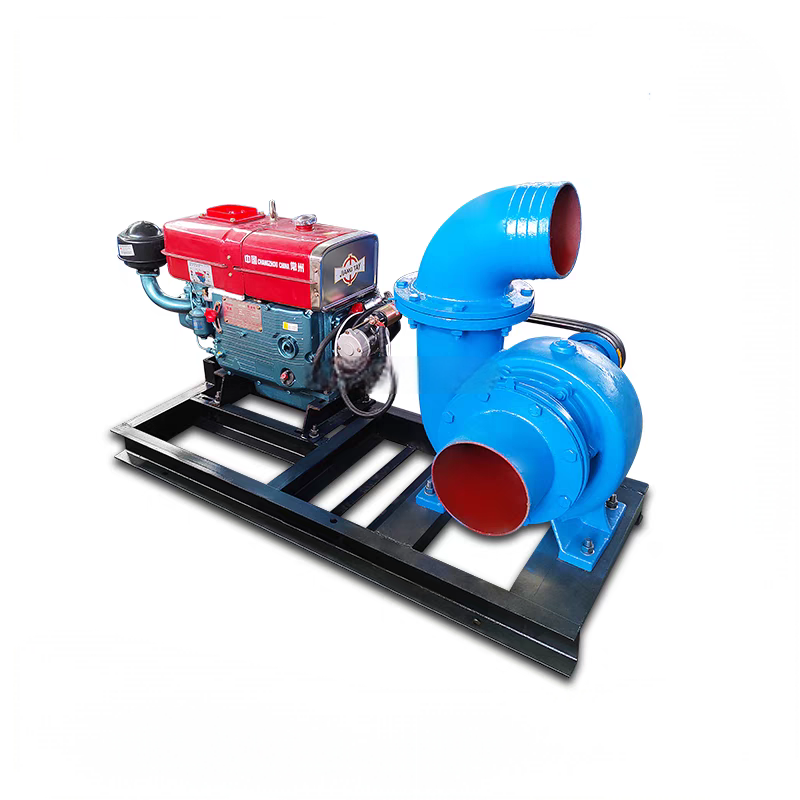

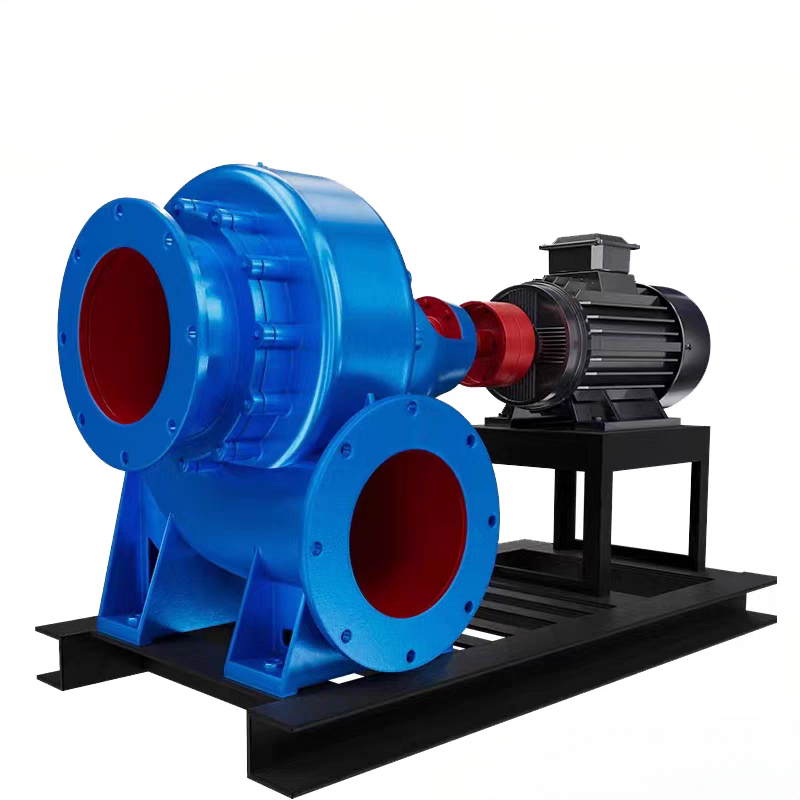

There are direct transmission and variable-speed transmission. The commonly used power machines are electric motors and diesel engines. When placing an order, the model (power, speed) of the power machine should be clearly specified to determine the specifications of the coupling or pulley.
▶Pump direction:
Looking at the pump inlet, the impeller is generally rotating counterclockwise; (650HW-5, -7, -10 pumps rotate clockwise)
▶Model explanation:
Taking 100HW-8S as an example
100 - inlet and outlet diameter (mm)
HW - horizontal volute mixed-flow pump
8 - designed head (m)
S - variant code
